Environment creation

Scripts to create the environment and assist in configuration and debugging

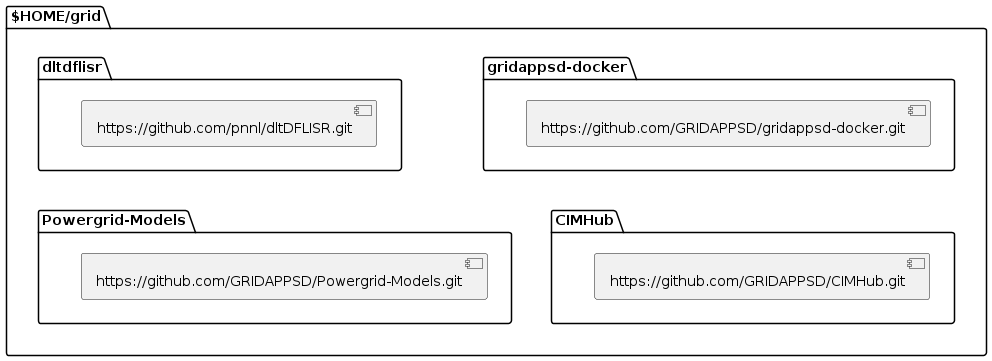

The scripts for creating and populating the environment require the folder organization described below.

' skinparam defaultFontSize 16 folder $HOME/grid { folder gridappsd-docker as F1 { [https://github.com/GRIDAPPSD/gridappsd-docker.git] } folder dltdflisr as F2 { [https://github.com/pnnl/dltDFLISR.git] } folder CIMHub as F3 { [https://github.com/GRIDAPPSD/CIMHub.git] } folder Powergrid-Models as F4 { [https://github.com/GRIDAPPSD/Powergrid-Models.git] } } F1 -d[hidden]-> F3 ' F2 -d[hidden]-> F3 F2 -d[hidden]-> F4

environment.sh

  • Stops GridAPPS-D docker.

  • Deletes GridAPPS-D docker and all images.

  • Deletes all docker volumes. NOTE: Deletes all not just GridAPPS-D docker volumes.

  • Create GridAPPS-D docker.

adding_test_case.sh

  • Populates the test case on the docker.

  • Places the needed GridAPPS-D configuration file “.cfg” in GridAPPS-D.

show_test_cases.sh

  • Shows the available tests cases in GridAPPS-D.

NOTE: Not needed for environment or run.

port_utilization.sh

  • Presents the port utilization.

  • The default port is the 61613 used by GridAPPS-D. But it can be easily altered.

    • Can provide useful information for debuting.

NOTE: Not needed for environment or run.
